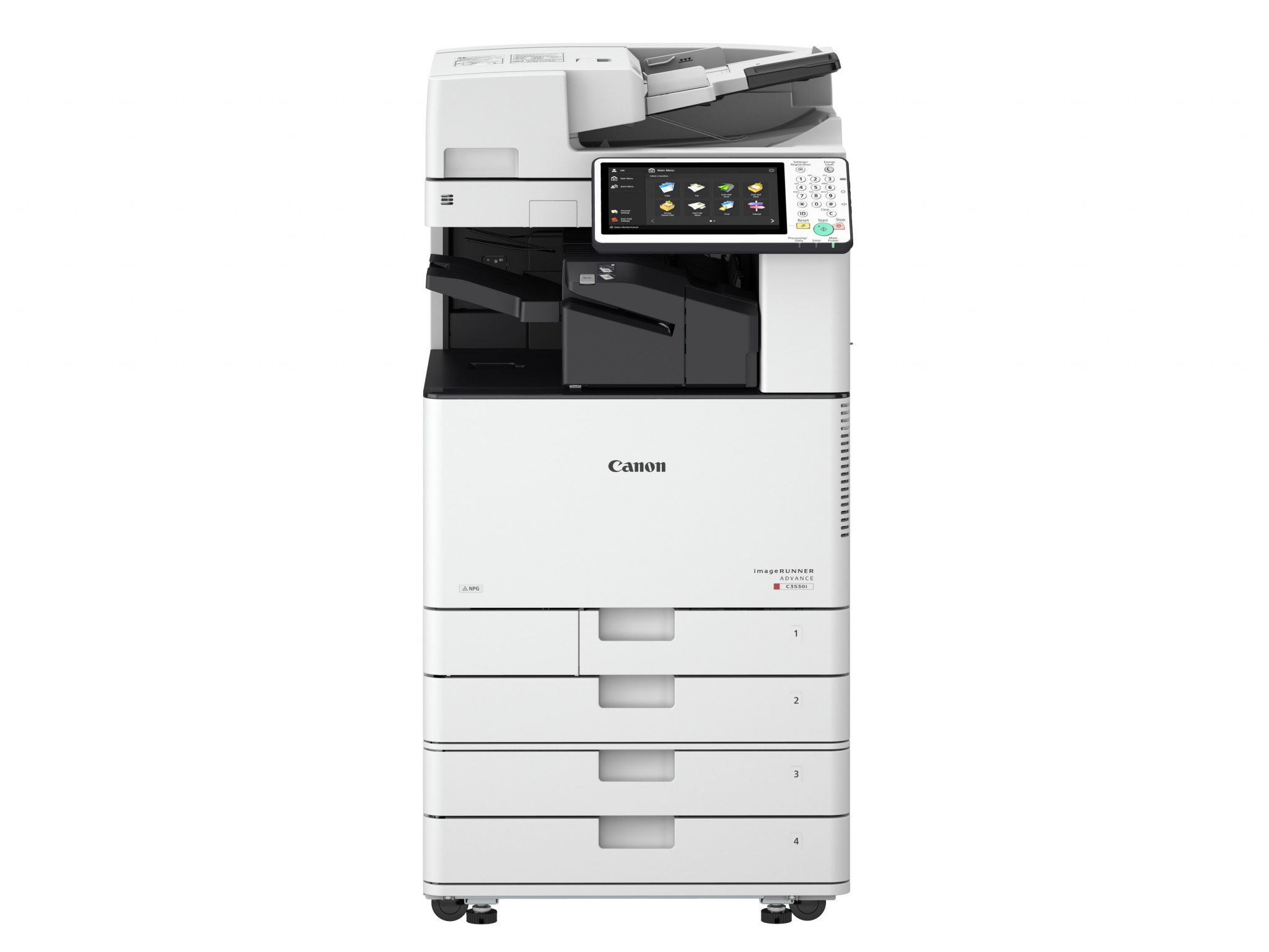

Canon imageRUNNER ADVANCE C3530i dengan model facelift sederhana dan platform interface dan liver generasi 3
imageRUNNER ADVANCE C3530i Series
Sempurna untuk kantor yang ingin mengoptimalkan alur kerja dan menikmati cetakan warna berkualitas
Didesain untuk kelompok kerja atau perusahaan kecil dan menengah. Dirancang dengan intuitif, konektivitas, dan cetakan warna berkualitas, seri iR-ADV C3530i memberikan kinerja optimal untuk tempat kerja Anda.
Source: YouTube
Baca selengkapnya mengenai Managed Print Service (MPS)
| Type | Colour Laser Multifunctional | |
| Core Function | Print, Copy, Scan, Send, Store and Optional Fax | |
| Processor | Canon Dual Custom Processor (Shared) | |
| Control Panel | Standard: 10.1 inch TFT LCD WSVGA Colour Touch Panel | |
| Memory | Standard: 3.0GB RAM | |
| Hard Disk Drive | Standard: 250GB | |
| Maximum: 1TB | ||
| Interface Connection | Network | Standard: 1000Base-T / 100Base-TX / 10Base-T, Wireless LAN (IEEE 802.11 b/g/n) |
| Optional: NFC, Bluetooth | ||
| Others | Standard: USB 2.0 x 1 (Host), USB 3.0 x 1 (Host), USB 2.0 x1 (Device) | |
| Optional: Serial Interface, Copy Control Interface | ||
| Paper Capacity (A4, 80gsm) | Standard: | 1,200 Sheets |
| Maximum: | 2,300 Sheets | |
| Paper Sources (A4, 80gsm) | Standard: | Two 550-sheet Paper Cassettes 100-sheet Multi-purpose tray |
| Optional: | CASSETTE FEEDING UNIT-AP1: Two 550-sheet Paper Cassette | |
| Maximum: | 2,300 Sheets | |
| Paper Output Capacity (A4, 80gsm) | Standard: | 250 Sheets |
| Maximum: | 3,450 Sheets (With External Finisher and COPY TRAY-J2) | |
| Finishing Capabilities | Standard: | Collate, Group |
| With Inner Finisher Option: | Offset, Collate, Group, Staple, ECO-Staple, Staple-On Demand | |
| With External Finisher Option: | With External Finisher: Offset, Collate, Group, Staple, **Saddle Stitch, *Hole Punch, ECO-Staple, Staple-On Demand * Necessary for 2/3/4 HOLE PUNCHER UNIT-A2 | |
| Supported Media Types | Cassettes (1/2): | Thin paper, Plain paper, Thick paper, Color paper, Recycled paper, Pre-punched paper, Transparency, Bond paper, Envelope |
| Multi Purpose Tray | Thin paper, Plain paper, Thick paper, Color paper, Recycled paper, Pre-punched paper, Transparency, Tracing paper, Label, Bond paper, Coated paper, Envelope | |
| Cassette Feeding Unit-AP1: | Thin paper, Plain paper, Thick paper, Color paper, Recycled paper, Pre-punched paper, Transparency, Bond paper *Use only A4 transparencies made especially for multi-functional device | |
| Supported Media Sizes | Cassette 1: | Standard size: A4, B5, A5R |
| Envelopes: No.10 (COM10), ISO-C5, DL | ||
| Custom Size: 139.7 x 182mm to 297 x 215.9mm | ||
| Cassette 2: | Standard size: A3, B4, A4, A4R, B5, A5R, Foolscap, India Legal, F4A, Envelopes (No. 10 (COM 10), Monarch, ISO-C5, DL), | |
| Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
| CASSETTE FEEDING UNIT-AP1 (3/4): | Standard size: A3, B4, A4, A4R, B5R, B5, A5R | |
| Custom Size: 139.7 x 182mm to 304.8 x 457.2mm | ||
| Multi-Purpose Tray: | Standard size: A3, B4, A4, A4R, B5, B5R, A5, A5R, Foolscap, India Legal, F4A, Envelopes (No. 10 (COM 10), Monarch, ISO-C5, DL), | |
| Custom size: 98.4 x 139.7mm to 320 x 457.2mm | ||
| Free size: 98.4 x 139.7mm to 320 x 457.2mm | ||
| Envelope custom size: 98 x 98mm to 320 x 457.2mm | ||
| Supported Media Weights | CASSETTES: | 52 to 220g/m2 |
| MULTI-PURPOSE TRAY: | 52 to 300g/m2 | |
| DUPLEX: | 52 to 220g/m2 | |
| Warm-up Time | From Power On*: | 34 Seconds or Less *Time between device power-on and when the start key is enabled (Force Hold Print) |
| From Deep Sleep Mode: | 10 Seconds or Less | |
| Quick Startup Mode: | 4 seconds or less** ** If | |
| Dimensions (W x D x H) | With SINGLE PASS DADF-A1: | 565 x 742 x 900mm |
| With DADF-AV1： | 565 x 736 x 880mm | |
| Installation Space (W x D) | Basic: | 978 x 1,123mm (attached with Multi-Purpose Tray open + Cassette Drawers open |
| Fully Configured: | 1,620 x 1,123mm (attached with BOOKLET FINISHER-AA1 + Multi-Purpose Tray extension extended) | |
| Weight (Including the toner bottle) | Approx. 68kg Approx. 81.5kg (when attach with SINGLE PASS DADF-A1) Approx. 76.2kg (when attach with DADF-AV1) | |
| Print Specification | ||
| Printing Method | Colour laser beam printing | |
| Print Speed | iR-ADV C3530i: | 30 / 30ppm (A4) 15 / 15ppm (A3) |
| iR-ADV C3525i: | 25 / 25ppm (A4) 15 / 15ppm (A3) | |
| iR-ADV C3520i: | 20 / 20ppm (A4) 15 / 15ppm (A3) | |
| Print Resolution | Up to 1,200 x 1,200dpi | |
| Page Description Languages | UFR II (Standard), PCL6 (Standard), Adobe PS 3 (Option) | |
| Double Sided Printing | Automatic (Standard) | |
| Direct Print | Direct printing available from USB memory key, Advanced box, Remote UI and Web Access* Supported File Types: PDF, TIFF, JPEG, XPS*Only PDF print from websites is supported. | |
| Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J / K / S / T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts** PS fonts: 136 Roman | |
| Operating System | UFRII: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7 or later) |
| PCL: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016 | |
| PS: | Windows Vista / Server 2008 / Windows 7 / Server 2008 R2 / Server 2012 / Windows 8.1 / Server 2012 R2 / Windows 10 / Server 2016, MAC OS X (10.7 or later) | |
| PPD: | MAC OS X (10.3.9 or later), Windows Vista / Windows 7 / Windows8.1 / Windows10 | |
| Copy Specification | ||
| Copy Speed (BW / Colour) | iR-ADV C3530i: | 30 / 30ppm (A4) 15 / 15ppm (A3) |
| iR-ADV C3525i: | 25 / 25ppm (A4) 15 / 15ppm (A3) | |
| iR-ADV C3520i: | 20 / 20ppm (A4) 15 / 15ppm (A3) | |
| First-Copy-Out Time* (A4) * 20ºC to 30ºC Environment | Approx. 5.9 / 8.2 seconds or less | |
| Multiple Copies | Up to 999 copies | |
| Copy Exposure | Automatic or Manual (9 Levels) | |
| Magnification | 25% – 400% (1% Increments) | |
| Preset Reductions | 25%, 50%, 70%, 81%, 86% | |
| Preset Enlargements | 115%, 122%, 141%, 200%, 400% | |
| Scan Specification | ||
| Type | Single-pass Duplexing Automatic Document Feeder or Duplexing Automatic Document Feeder | |
| Document Feeder Paper Capacity | SINGLE PASS (SP) DADF-A1: | 150 Sheets (80g/m2) |
| DADF-AV1: | 100 Sheets (80g/m2) | |
| Document Feeder Supported Media Sizes | SINGLE PASS DADF-A1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6R |
| DADF-AV1: | A3, B4, A4, A4R, B5, B5R, A5, A5R, B6 | |
| Document Feeder Supported Media Weights | SINGLE PASS DADF-A1: | |
| Single-sided scanning: | 38 to 157g/m2(BW) | |
| 64 to 157g/m2(CL) | ||
| Double-sided scanning: | 50 to 157g/m2(BW) | |
| 64 to 157g/m2(CL) | ||
| DADF-AV1: | ||
| Single-sided scanning: | 38 to 128g/m2(BW) | |
| 64 to 128g/m2(CL) | ||
| Double-sided scanning: | 50 to 128g/m2(BW) | |
| 64 to 128g/m2(CL) | ||
| Pull Scan Spec | Colour Network ScanGear2. For both Twain and WIA Supported OS: Windows Vista / 7 / 8.1 / 10 Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 | |
| Scan Resolution | 100 x 100 dpi, 150 x 150 dpi, 200 x 100 dpi, 200 x 200 dpi, 200 x 400 dpi, 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi | |
| Platen Acceptable Originals | Paper size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6 | |
| Scan Speed (A4) | SP DADF-A1: | |
| 1-sided Scanning (BW): | 80ipm (300dpi) / 51ipm (600dpi) | |
| 1-sided Scanning (Colour): | 80ipm (300dpi) / 51ipm (600dpi) | |
| 2-sided Scanning (BW): | 160ipm (300dpi) / 51ipm (600dpi) | |
| 2-sided Scanning (Colour): | 160ipm (300dpi) / 51ipm (600dpi) | |
| DADF-AV1: | ||
| 1-sided Scanning (BW): | 70ipm (300dpi) / 51ipm (600dpi) | |
| 1-sided Scanning (Colour): | 70ipm (300dpi) / 51ipm (600dpi) | |
| 2-sided Scanning (BW): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
| 2-sided Scanning (Colour): | 35ipm (300dpi) / 25.5ipm (600dpi) | |
| Double sided scanning | 2-sided to 2-sided (Automatic) | |
| Send Specification | ||
| Optional / standard | Standard on all models | |
| Destination | E-mail / Internet FAX (SMTP), SMB, FTP, WebDAV, Mail Box Simple, Super G3 FAX (Optional), IP Fax (Optional) | |
| Colour Mode | Automatic-Colour Select (Full Colour / Grayscale), Automatic-Colour Select (Full Colour / Black-and-White), Full colour, Grayscale, and Black-and-White | |
| Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) | |
| Send Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | |
| Communication Protocol | File: FTP, SMB v3.0, WebDAV | |
| E-mail / I-Fax: SMTP, POP3, I-Fax (Simple, Full) | ||
| File Format | Standard: TIFF, JPEG, PDF (Compact, Apply policy, Optimize for Web, PDF A/1-b, Encrypted), XPS (Compact), PDF / XPS (Digital Signature) | |
| Optional: PDF (Searchable, Trace & Smooth), XPS (Searchable), Office Open XML (PowerPoint, Word) | ||
| Fax Specification | ||
| Optional / Standard | Optional on all models | |
| Maximum Number of Connection Lines | 2 | |
| Modem Speed | Super G3: 33.6kbps / G3: 14.4kbps | |
| Compression Method | MH, MR, MMR, JBIG | |
| Resolution | 400 x 400dpi, 200 x 400dpi, 200 x 200dpi, 200 x 100dpi | |
| Sending / Recording Size | A5R* to A3 * Sent as A4 | |
| FAX Memory | Up to 30,000 pages | |
| Speed Dials | Max. 200 | |
| Group Dials/Destinations | Max. 199 dials | |
| Sequential Broadcast | Max. 256 addresses | |
| Memory Backup | Yes | |
| Store Specification | ||
| Mail Box (Number supported) | 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes 30,000 Maximum Pages Stored | |
| Advanced Box | Communication Protocol: | SMB or WebDAV |
| Supported Client PC: | Windows (Windows Vista / 7 / 8 / 8.1 / 10) | |
| Concurrent Connections (Max.): | SMB: 64, WebDAV: 3 (Active Sessions) | |
| Advanced Box Available Disc Space | Approx. 16GB (Standard HDD) | |
| Approx. 480GB (1TB HDD) | ||
| Memory Media | Standard: USB Memory | |
| Security Specification | ||
| Authentication | Standard: Picture Login Authentication, User Authentication, Department ID Authentication, Device and Function Level Login, Access Management System | |
| Optional: My Print Anywhere secure print (Requires uniFLOW) | ||
| Data | Standard: Trusted Platform Module (TPM), Hard Disk Password Lock, Hard Disk Drive Erase, Hard Disk Drive Encryption (FIPS140-2 Validated), Mail Box Password Protection | |
| Optional: Hard Disk Drive removal | ||
| Network | Standard: IP / Mac Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP | |
| Document | Standard: | Secure Print, Encrypted PDF, Encrypted Secure Print, Device signature, Secure Watermarks |
| Optional: | User signature, Document Scan locking | |
| Environmental Specifications | ||
| Operating Environment | Temperature: | 10 to 30 ºC |
| Humidity: | 20 to 80 % RH (no condensation) | |
| Power Requirements | 220 – 240V (±10 %) , 50 / 60Hz (±2Hz), 4.0A | |
| Power Consumption | Maximum: | 1.5kW |
| Standby: | Approx. 41.2W* | |
| Sleep mode: | Approx. 0.8W ** | |
| * Reference Value ** 0.8W sleep mode is not available in all circumstances due to certain settings. | ||
