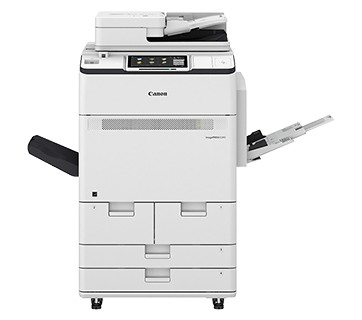

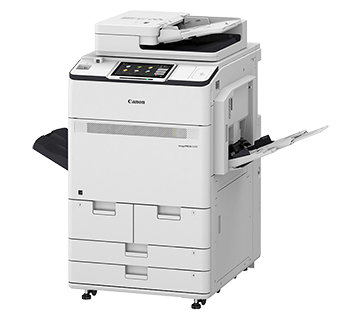

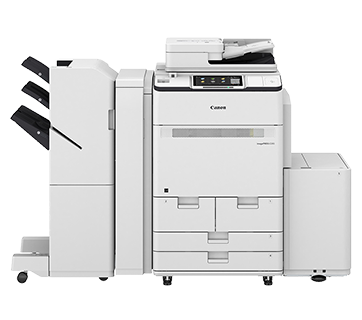

Canon imagePRESS C265

Widen your creative limits with the imagePRESS C265

Whether you are an SME, creative agency, copy shop or work in an in-house print environment, this printer easily gives office functionality and professional quality to broaden your print capabilities. The intuitive solution for driving customer engagement.

Print speed of up to 65/70 pages per minute (CL/BW)
350 gsm media weight support on manual duplex
2400 dpi sharp image quality with imagePRESS R-VCSEL Laser
1300 mm long-sheet capability

Specification :

Main Unit

Machine Type	A3 Colour Laser Multifunctional
Core Functions	Print, Copy, Scan, Send, Store and Optional Fax
Processor	1.8 GHz Dual Core Processor
Control Panel	Standard: 25.6 cm (10.1 inch) TFT LCD WSVGA Colour Touch panel
Memory	Standard: 5 GB RAM Main CPU Side: 2 GB Image Processing CPU Side: 2 GB + 1 GB (Reserved for Imaging Processing)
Hard Disk Drive	Standard: SSD 256 GB GB Optional: SSD 1 TB
Interface Connection	NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low EnergyOTHERS Standard: USB 2.0 (Host) x2, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface
Network Protocols	TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Paper Supply Capacity (A4, 80 gsm)	Standard: 3,550 sheets 250-sheet Multi-Purpose tray 1,100-sheet Paper Deck x 2, 550-sheet Paper Cassette x 2, Maximum: 7,050 sheets (with POD Deck Lite-C1 or Paper Deck Unit-E1)
Paper Output Capacity (A4, 80 gsm)	250 sheets (with Copy Tray-R2) Maximum: 3,500 sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1) Maximum: 5,000 sheets (with Stapler Finisher-AG1 or Booklet Finisher-AG1)
Finishing Capabilities	With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming.
Supported-Media-Types	Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Decks (Right/Left): Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead Paper Cassettes (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab^1, Envelope^2
Supported Media Sizes	Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm Long size: 210.0 x 487.8 mm to 330.2 x 1,300.0 mm^*3 Free size: 100.0 x 148.0 mm to 330.2 x 487.7 mm Envelope: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 90.0 x 148 mm to 330.2 x 487.7 mmPaper Decks (Right/Left): Standard size: A4, B5Paper Cassettes (Upper/ Lower): Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 139.7 x 182.0 mm to 330.2 x 487.7 mm Envelope: COM10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 148.0 mm to 330.2 x 487.7 mm
Supported Media Weights	Multi-purpose tray: 52 to 350 gsm Paper Deck (Right/Left): 52 to 220 gsm Paper Cassette (Upper/Lower): 52 to 256 gsm Duplex: 52 to 220 gsm
Warm-up Time	Quick Startup Mode: 4 seconds or less (Time until key operations can be performed on the touch panel display) From Power On: 30 seconds or less (Time until it becomes possible to start copying) From Sleep Mode: 30 seconds or less
Dimensions (W x D x H)	689 x 937 x 1,185 mm
Installation Space (W x D)	Basic: 2,026 x 1,524 mm (with Front door open + Multi-purpose tray/upper-right cover open + Buffer Pass-M1 + Booklet Finisher-AC1/extension tray & rotary tray extended) Fully Configured: 2,621 x 1,524 mm (with POD Deck Lite-C1 + Buffer Pass-M1 + Document Insertion Unit-Q1 + Booklet Finisher-AC1/extension tray extended) Fully Configured: 5,900 x 1,524 mm (with Multi Drawer PD-E1 + Stack Bypass Tray-B1 + Buffer Pass-M1 + Insertion Unit-R1 + Paper Folding Unit-K1 + Booklet Finisher-AG１+ Booklet Trimmer G1+ 2-Knife Trimmer-G1 + Trimmer Conveyor-B1/extension tray extended)
Weight	Approx. 261 kg (including toner)

Print

Printing Method	Colour Laser Beam Printing (Electronic Photography)
Print Speed A4 (CL/BW)	65 ppm CL and 70 ppm BW (A4, A5^4, A5R, A6R^4) 32 ppm CL and 35 ppm BW (A3)
Target (Max) Print/Copy Volume per Month	Up to 100,000 pages
Monthly Duty Cycle	330,000 pages
Alignment Tolerance	Cross track: 2.0 mm or less, In track: 1.2 mm or less
Print Resolution (dpi)	2,400 x 2,400
Page Description Languages	Standard: UFR II, PCL 6, PCL5 Optional: imagePRESS PS Printer Kit -G1
Direct Print	Direct printing available from USB memory, Advanced Space, Remote UI and Web Access^*5 Supported file types: TIFF, JPEG, PDF, EPS and XPS
Fonts	PPCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T^6(Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts^7
Print Features	Secured Print, Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced Hold Printing, Scheduled Printing, Printing Using a Virtual Printer
Operating System	UFRII: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022, Mac OS X (10.11 or later). PCL: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022. PS (Driver): Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022, Mac OS X (10.11 or later) PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later)

Copy

Copy Speed (CL/BW)	65 / 70 ppm: A4, A5^8, A5R, A6R^8 46 / 49 ppm: A4R 32 / 35 ppm: A3
First-Copy-Out Time	Approx. 4.8/5.9 seconds or less
Copy Resolution (dpi)	600 x 600
Multiple Copies	Up to 9,999 copies
Copy Density	Automatic or Manual (9 Levels)
Magnification	25% – 400% (1% Increments)
Preset Reductions	25%, 50%, 70%, 100% (1:1)
Preset Enlargements	141%, 200%, 400%

Scan

Type	Single-pass Duplexing Automatic Document Feeder^*9[2-sided to 2-sided (Automatic)]
Pull Scan Specifications	Colour Network ScanGear2 for both TWAIN and WIA Supported OS: Windows® 8.1 / 10 / 11 / Server 2012 / Server 2012 R2 / Server 2016 / Server 2019 / Server 2022
Scan Resolution (dpi)	Scan for Copy: 600 x 600, Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600
Document Feeder Paper Capacity (80 gsm)	Up to 200 Sheets
Acceptable Originals and Weights	Platen: Sheet, Book, 3-Dimensional objects Document Feeder media weight: 1-sided scanning: 38-220 gsm (BW/CL)^10 2-sided scanning: 38-220 gsm (BW/CL)^10
Supported Media Sizes	Platen max. Scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6R, Custom size: 70 .0 x 139.7 mm to 304.8 x 431.8 mm
Scan Method	Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online optional).
Scan Speed (ipm: BW/CL; A4)	Single-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) Double-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

Send

Destination	E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 Fax (optional), IP Fax (optional)
Address Book	LLDAP (2,000), Local (1,600), Speed dial (200)
Scan Resolution (dpi)	600 x 600
Communication Protocol	File: FTP (TCP/IP), SMB v3.0, WebDAV E-mail/I-Fax: SMTP, POP3
File Format	TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
Universal Send Features	Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, Email Priority, TX Report, Original Content Orientation, Skip Blank Pages.

Fax

Optional/Standard	Optional
Maximum Number of Connection Lines	1
Modem Speed	Super G3: 33.6 kbps G3: 14.4 kbps
Compression Method	MH, MR, MMR, JBIG
Resolution (dpi)	400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal)
Sending/Recording Size	Sending: A3, A4, A4R, A5^11, A5R^11, B4, B5^12, B5R^11 Receiving: A3, B4, A4, A4R, A5R, B5, B5R
FAX Memory	Up to 30,000 pages (2,000 jobs)
Speed Dials	Max. 200 dials
Group Dials/Destinations	Max. 199 dials
Sequential Broadcast	Max. 256 addresses
Memory Backup	Yes
Fax Features	Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Sub-address Sending, Confidential Mailbox, 2 on 1 Log

Store

Mail Box (Number Supported)	100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes, 30,000 Maximum Pages (2,000 jobs) Stored
Advanced Space	Communication Protocol: SMB or WebDAV Supported Client PC: Windows® (Windows® 8.1 / 10) Concurrent Connections (Max.): SMB: 64, WebDAV: 3
Advanced Space Available Disc Space	Approx. 16 GB Approx. 480 GB (with optional 1 TB HDD)
Advanced Space features	Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore

Security

Authentication & Access Control	User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control)
Network Security	TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/ Wired LAN), Disabling Unused Functions (Enabling/ Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception
Document Security	Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print^*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Space Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/ Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark)
Device Security	Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFP Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP: pending confirmation).
Device Management & Auditing	Administrator Password, Digital Certificate and Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting.

Environmental

Operating Environment	Temperature: 20-27°C Humidity: 15-60% RH (Relative Humidity without condensation)
Power Source	220-240 V (±10%), 50/60 Hz (±2 Hz), 10 A
Power Consumption	Approx. 2,000 W Copying: (with DADF continuous scan) Approx. 1,228 W^14 Standby: Approx. 136.6 W^14 Sleep mode: Approx. 0.9 W^*15
Noise Levels	Sound Power Level (LWA,m) Active (BW) (1-sided) 7.0 B^16, Kv 0.3 B^16Sound Pressure (LpAm) Bystander’s position: Active (BW/CL) (1-sided) 55 dB^16/55 dB^16 Stand-by 35 dB^*16

Software & Printer Management

Tracking & Reporting	Universal Login Manager (ULM) uniFLOW Online Express
Remote Management Tools	iWEMC (iW Enterprise Management Console) eMaintenance Content Delivery System
Scanning Software	Colour Network ScanGear 2
Optimisation Tools	Canon Driver Configuration Tool
Platform	MEAP (Multifunctional Embedded Application Platform)

Fiery Print Controller

Optional/Standard	Optional
Name	imagePRESS Server M20 (Embedded)
Print Resolution (dpi)	1200 x 1200, 600 x 600
Page Description Language(s)	Adobe PS3, PCL6
Memory	8 GB (2 x 4 GB)
Hard Disk Drive	500 GB SATA
Processor Speed	Intel Pentium G5400 (3.7 GHz)
System	Fiery FS500
Fonts	PS: 138 Fonts PCL: 113 Fonts
Supported Operating Systems	Windows® 7 (64 bit) / 8.1 (64 bit) / 10 (64 bit) / 11 / Server 2012 (64 bit only) / Server 2012 R2 (64 bit only) / Server 2016 R2 (64 bit only) / Server 2019 (64 bit only), MAC OS (10.14, 10.15, 10.16, 11.0, 12)
Interface	2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB3.0 x 2 (Rear), USB2.0 x 4 (Rear)
Network Protocols	TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)
Direct Print	PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional)
VDP	FreeForm v1/v2.1
Fiery Print Controller Standard Features	Fiery Command WorkStation6 / Paper Catalog / Fiery Spot-On / Fiery Remote Scan / Fiery Hot Folders & Virtual Printers
Fiery Print Controller Options	Fiery Impose / Fiery Compose / Fiery Impose and Compose / Fiery Job Expert and PDF Processing Kit
Hardware Platform	E500
Base OS	Debian of Linux
Power Source	AC100-240 V, 50 Hz/60 Hz, 3.0A (100V) – 1.3A (240 V)
Maximum Power Consumption	55 W
Dimensions (W x D x H)	297 x 90 x 272 mm
Weight	Fiery unit only (with plate): 5.5 kg

Paper Supply Options

PAPER DECK UNIT-E1

Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Pre-punched, Letterhead, Bond
Paper Size: A4, B5, LTR^*17
Paper Weight: 52-256 gsm
Power Source: From the main unit
Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit)
Weight: Approx. 34 kg

POD Deck Lite-C1

Paper Capacity: 3,500 sheets (80 gsm)
Paper Type: Thin, Plain, Recycled, Thick, Colour, Pre-punched, Letterhead, Bond, Tab, Transparency, Label, Coated, Textured, Tracing, Envelope^*18
Paper Size: A3, B4, A4, A4R, B5, B5R, A5R, SRA3, 11″x17″, LGL_R, LTR, LTR_R, EXE, STMT_R, 12″x18″, 13″x19″, 8K, 16K, 16K_R, Envelope [No.10(COM10), Monarch, DL, ISO-C5], Custom size (139.7 x 148.0 mm to 330.2 x 487.7 mm)
Paper Weight: 52-350 gsm
Power Source: 220-240V, 50/60Hz, 1.2A
Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit)
Weight: Approx. 68 kg

Output Options

Copy Tray	Copy Tray-R2 Provides a simple tray for basic output needs. Capacity: 250/100 sheets (1-sided/2-sided, 80 gsm)
STAPLE FINISHER-AC1	Tray Capacity (with 80 gsm paper): Upper Tray: A4/A5/A5R/B5: 250 sheets (80 gsm) SRA3/A3/A4R/B4/B5R: 125 sheets (80 gsm) Envelope: 30 sheetsMid Tray: A4/A5/A5R/B5: 250 sheets (80 gsm), SRA3/A3/A4R/B4/B5R: 125 sheets (80 gsm) Envelope: 30 sheetsLower Tray: A4/A5/A5R/B5: 3000 sheets (80 gsm), SRA3/A3/A4R/B4/B5R: 1500 sheets (80 gsm) A6R: 250 sheets (80 gsm) Envelope: Monarch: 30 sheets, COM10 No.10, DL, ISO-C5: 100 sheets Paper Weight: Upper Tray / Mid Tray: 52 to 256 gsm Lower Tray: 52 to 350 gsm Staple Position: Corner, Double Staple Capacity: A4/B5: 65 sheets (52-90 gsm), A3/A4R/B4: 40 sheets (52-90 gsm) Eco Staple: A3/A4: 10 sheets (52 to 64 gsm) 8 sheets (65 to 81.4 gsm) 6 sheets (82 to 105 gsm) Staple On Demand: 65 sheets (52 to 90 gsm) Power Source: From the main unit Dimensions (W x D x H): 527 (Max 656^19) x 623 x 1,099 (Max 1,195^19) mm Weight: Approx. 36 kg
BOOKLET FINISHER-AC1 (External)	(Includes the above Staple Finisher-AC1 basic staple specifications) Booklet Stitch Paper Size: A3, A4R, B4, Custom size (195 x 270 mm to 304.8 x 457.2 mm) Booklet Stitch Paper Weight: Body sheet 52-220 gsm, Cover sheet 52-256 gsm Booklet Stitch Staple Capacity 20 sheets x10 sets (52-81.4 gsm)Non-Staple Folded Bunch Capacity: up to 3 sheets (52-105 gsm) Power Source: From the main unit Dimensions (W x D x H): 527 (Max 656^19) x 623 x 1,099 (Max 1,195^19) mmWeight: Approx. 60 kg
FINISHER JOGGER KIT-A1	Attached to the Lower Tray of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 Paper Size: [Non-Sort] A3, A4, A4R, B4, B5, B5R [Bunch Shift] A3, A4, A4R, B4, B5 Paper Weight: [Non-Sort] 52-300 gsm [Bunch Shift] 52-256 gsm
STAPLE FINISHER-AG1 (External) Requires the Accessory Interface Kit-A2	Upper Tray Capacity: SRA3/A3/A4/A4R/A5/A5R/A6R/B4/B5/B5R: 1,000 sheets (64-324 gsm), 200 sheets (325-350 gsm)Long sheet^*20(210 x 487.8 mm to 330.2 x 762 mm) 100 sheets (52-79 gsm)Lower Tray Capacity: A4/B5: 4,000 sheets Paper Weight: 52-350 gsm Staple Position: Corner, Double Staple Capacity (including Staple On Demand): A4/B5: 100 sheets (52-80 gsm) A3/A4R/B4/B5R: 50 sheets (52-81.4 gsm) Power Source: 220-240 V, 50-60 Hz, 8A Dimensions (W x D x H): 860 x 792 x 1,239 mm (When the extension tray is extended) Weight: Approx. 130 kg
BOOKLET FINISHER-AG1 (External) Requires the Accessory Interface Kit-A2	Includes the above Staple Finisher-AG1 basic staple specifications Saddle Stitch Paper Size: SRA3, A3, A4R, B4, Custom size (210.0 x 279.4 mm to 330.2 x 487.7 mm) Saddle Stitch Staple Capacity: 25 sheets (52-80 gsm) (Including 1 cover sheet) Power Source: 220-240V, 50-60Hz, 8A Dimensions (W x D x H): 1,060 x 792 x 1,239 mm (when the extension tray is extended) Weight: Approx. 180 kg
2/4 HOLE PUNCHER UNIT-A1	Attached inside of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 2 or 4 Holes (FRN) Paper Weight: 52-300 gsm Paper Size: 2 holes A3, A4, A4R, B4, B5, B5R; 4 holes A3, A4 Power Source: From the finisher
4 HOLE PUNCHER UNIT-A1	Attached inside of either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, A4R, B4, B5, B5R Power Source: From the finisher
PUNCHER UNIT-BT1 (2/F4H)	Attached inside of either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 2 or 4 Holes (FRN) Paper Weight: 52-300 gsm Paper Size: 2 holes: A3, A4, A4R, B4, B5, B5R, Custom size (182 x 182 mm to 297 x 432.0 mm excluding 203 x 257 mm to 297 x 270 mm). 4 holes: A3, A4, B4, B5, Custom size (257 x 182 mm to 297 x 432 mm) Power Source: From the finisher
PUNCHER UNIT-BU1 (S4H)	Attached inside of either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 4 Holes (SWE) Paper Weight: 52-300 gsm Paper Size: A3, A4, B4, B5, Custom size: 257 x 182 mm to 297 x 432 mm Power Source: From the finisher
Booklet Trimmer-F1	Requires BOOKLET FINISHER-AG1 Paper Size: SRA3, A3, A4R, B4, Custom size: 210.0 x 279.4 mm to 330.2 x 487.7 mm Paper Weight: 52-220 gsm Trim Width: 2-28 mm Chip Tray Capacity: Approx. 5,000 sheets (Trim width 20 mm, A4, 80 gsm) Power Source: From the finisher Dimensions (W x D x H): 1,933 x 794 x 1,044 mm Weight: Approx. 152 kg (Attached to the device: width excluding belt conveyer)
DOCUMENT INSERTION/FOLDING UNIT-K1	Requires either the STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1 Number of Trays: 1 Tray Capacity: 100 Sheets (80 gsm) Supported Folding Type: Z-Fold, C-Fold Paper Type: [Z-Fold/C-Fold] Thin, Plain, Recycled, Colour, [Insertion Unit] Thin, Plain, Recycled, Colour, Thick, Letterhead, Bond, Coated, Tab, TexturedPaper Size: [Z-Fold] A3, A4R, B4, [C-Fold] A4R, [Insertion Unit] SRA3, A3, A4, A4R, B4, B5, B5R, 13″x19″ Paper Weight: [Z-Fold/C-Fold] 60-105 gsm, [Insertion Unit] 60-256 gsmPower Source: 100-240 V, 50/60 Hz, 1.0 A Dimensions (W x D x H): 247^{x 679 x 1,242 mm^{Weight: Approx. 76 kg}}
Document Insertion Unit-R1	Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 Number of Trays: 2 Tray Capacity: Up to 100 Sheets (with 80 gsm paper) Upper Tray: Up to 200 sheets Lower Tray: Up to 200 sheets Paper Type for Insertion: Thin, Plain, Recycled, Colour, Heavy, Coated, Textured, Bond, Pre-punched, Letterhead, Tab Paper Size for Insertion: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Paper Weight for Insertion: 52-300 gsm Power Source: 100-240 V, 50/60 Hz, 1.0 A Dimensions (W x D x H): 336^21x 793 x 1,407 mm^21 Weight: Approx. 61 kg
Paper Folding Unit-K1	Requires either the STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1 Supported Folding Type: Z-Fold, Accordion Z-Fold, C-Fold, Half-Fold, Double Parallel Fold Paper Type: Thin, Plain, Recycled, Colour, Bond Paper Sizes: Z-Fold: A3, A4R, B4, Accordion Z-Fold/ C-Fold, Half-Fold/ Double Parallel Fold/ Half-Fold: A4R Paper Weight: Z-Fold/ Accordion Z-Fold/ C-Fold/ Half-Fold: 52-105 gsm Double Parallel Fold: 52-90 gsm Power Source: From the finisher Dimensions (W x D x H): 336 x 793 x 1,190 mm Weight: Approx. 71 kg
Staple Cartridge	Staple-N1 – For stapling (3 x 5,000 pcs) (for STAPLE FINISHER-AG1 or BOOKLET FINISHER-AG1) Staple-P1 – For saddle stitching (2 x 5,000 pcs) (for BOOKLET FINISHER-AG1)Staple Cartridge-X1 – For stapling (3 x 5,000 pcs) (for STAPLE FINISHER-AC1 or BOOKLET FINISHER-AC1) Staple Cartridge-Y1 – For saddle stitching (2 x 2,000 pcs) (for BOOKLET FINISHER-AC1)
